About Integrity Failures and Device Tampering

About Integrity Failures and Device Tampering

The Eclypsium interface tracks three methods of potential device tampering: known implant, unknown binary/integrity failure, and baseline anomalies. This article explains each method in detail and provides guidance on locating this information within the platform.

Known Implant

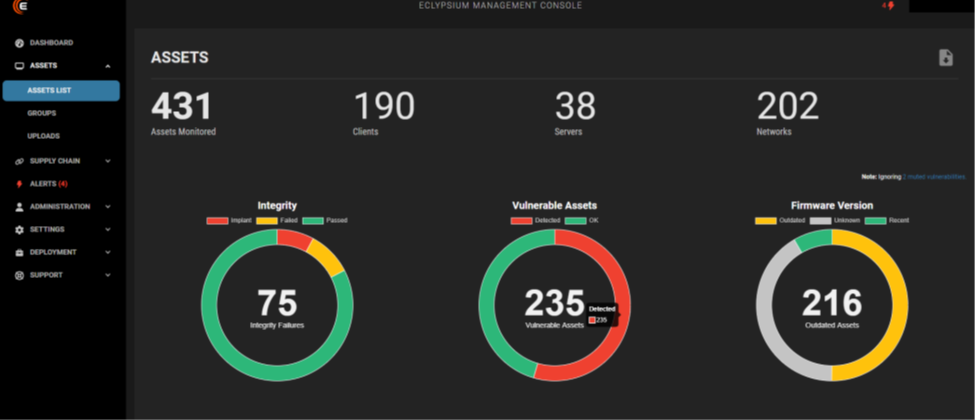

When a system scan detects indicators of compromise caused by a known implant, the dashboard will display the alert as "Implant(s) Detected".


Click on the red number above "Implant(s) Detected" to view the complete list of devices with known implants.

Unknown Binary / Integrity Failure

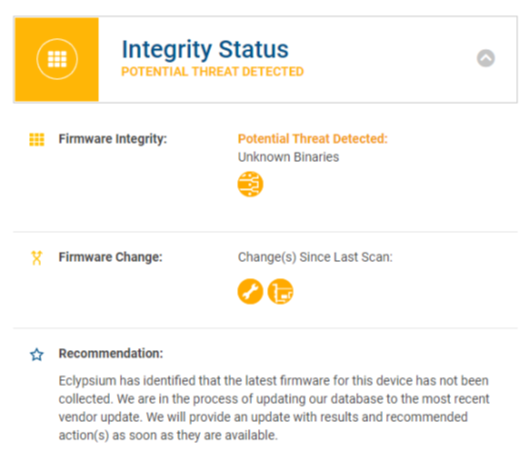

An Integrity Failure identifies firmware components that are unrecognized by Eclypsium, which may indicate potential tampering. To investigate, navigate to the specific device's details and expand the Integrity Status section.

Unknown Binaries

A system containing firmware binaries that are not included in the Eclypsium vendor-sourced whitelist will display Unknown Binaries.

A system with unknown binaries may potentially contain an unknown implant, but it could also be innocuous. This situation can arise in the following cases:
  1. The system is from a low-volume manufacturer.
  2. The vendor is not regularly monitored by Eclypsium.
  3. The firmware is still under evaluation by Eclypsium.
To reduce false positives, you can enable the High Confidence Mode configuration option under Settings > Reputation.
If the firmware is a known-good version included in Eclypsium's whitelist, please submit the result to Eclypsium for further research.

Binaries Failed Analysis

In conjunction with an Unknown Binary, you may encounter the Failed Analysis status. This indicates that the binary, even if hidden under High Confidence Mode, has been flagged as suspicious by the Eclypsium platform’s heuristic and static analysis.
Examples of suspicious behavior include:
  1. A UEFI firmware binary containing an NTFS file system driver (which is considered out-of-spec for UEFI).
  2. The presence of other code deemed suspicious.

Baseline Deviation

The last category, Baseline deviation, is the strictest of the three. Baseline deviations occur when a system with an established baseline in the Eclypsium interface experiences changes to one or more firmware components or settings. These changes might be due to:
  1. A user applying a vendor-original firmware update.
  2. Adjustments to firmware-related settings (e.g., disabling firmware write protection) without any firmware component or version change.
While such deviations may not directly indicate the presence of an implant, they could signify preparatory actions that set the stage for a future implant.

It is important to understand the concept of baseline configurations before enabling this feature. For more information, contact thinkshield@lenovocloudsoftware.com.
